Sony Ericson wireless CPU GSM/GPRS รุ่น GR64

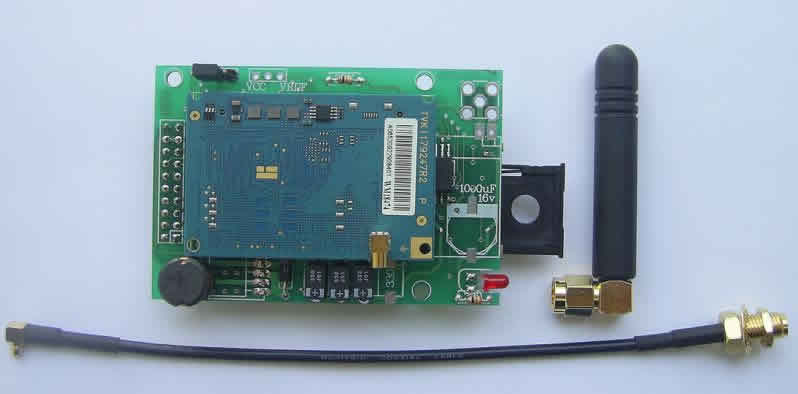

เป็นโมดูล GSM/GPRS โดยทางบริษัทได้ออกแบบ sub board เืพื่อให้เหมาะสมกับการใช้งานสำหรับนักวิจัยและทดลองในบ้านเรา สามารถนำโมดูลมาเสียบลงบน sub board "GR64-Sub" และนำไปต่อเข้ากับบอร์ดไมโครคอนโทรลเลอร์ได้โดยตรงเนื่องจาก GR64-Sub ได้ถูกออกแบบให้ใช้กับไฟ 5 โวลท์ และสัญญาณลอจิกต่างๆได้ปรับระดับให้เป็น TTL Logic 5 โวลท์
         การนำไปประยุกต์ใช้งาน บอร์ด GSM/GPRS GR64 สามารถนำไปใช้ในการสื่อสารข้อมูลระยะไกล เช่น ระบบ Telemetering,VehicleTracking(GPS),รายงานสถานภาพ เช่นอุณหภูมิ,ความชื้น,ความเร็วลม,ระดับน้ำ,ท่องเนต ฯลฯ

คุณสมบัติของ GR640001

Product Name : GR64 GSM-GPRS MODULE
Description : Wavecom GR64 GSM/GPRS Radio Device

Optimized for global M2M communications, the GR64 is a Quad Band GSM/GPRS Class 10 compact Radio Device. The GR64 offers a broad range of voice and data features, and enhanced features and compatibility with the Sony Ericsson GM47/48 and GR47/48 Radio Devices. Its intrinsic TCP/IP stack enables customers to make effective use of GPRS. The GR64 is configurable and possesses an extended range of input/output capabilities.

Benefits:

Offering enhanced features and compatibility with the GM47/48 and GR47/48 Radio Devices for Legacy users
Powerful and fast enabling complex and time critical applications
Minimize total solution cost by embedding application directly onto GR64

Features:
Compact size with MMCX RF connector
Quad Band GSM 850/900/1800/1900 MHz
GSM/GPRS Class 10
2x UART Connectivity (Available through embedded applications)
Integrated TCP/IP stack
Embedded Applications
Analog Audio: (2x Microphone, 2x Speaker)
Digital Audio (PCM)
USB 2.0
RoHS Compliant
on module SIM card holder (only for GR64/40)
